Modern Kitchen Remodeling Plans: Master Architectural Layouts

Residential kitchen architecture has evolved beyond simple surface upgrades. The modern kitchen operates as a high-density intersection of structural engineering, mechanical routing, spatial ergonomics, and social activity. Homeowners frequently misjudge the scope of these transformations. They treat structural overhauls like minor cosmetic refreshes. Modern Kitchen Remodeling Plans. A successful project requires deep alignment between architectural intent, mechanical capacity, and daily functional requirements.

Comprehensive planning prevents costly field adjustments, structural compromises, and long-term functional defects. The design phase must balance spatial geometry with mechanical infrastructure. HVAC systems, electrical supply lines, plumbing runs, and load-bearing elements dictate what can be achieved within a footprint. Ignoring these technical constraints leads to delayed schedules, bloated budgets, and compromised ergonomics.

This analysis examines residential kitchen design from an architectural and project management perspective. Every phase demands methodical execution, from initial spatial mapping to long-term structural maintenance. Modern kitchen remodeling plans serve as the master technical blueprint. These plans synthesize physical construction requirements with high-density utility networks, establishing long-term durability and operational efficiency.

Table of Contents

Architectural Misunderstandings

Homeowners frequently assume that removing internal walls represents a simple cosmetic alteration. Non-load-bearing walls often house concealed plumbing stacks, structural bracing, or major electrical risers. Severing these lines without prior inspection creates immediate project stoppages. Structural engineers must evaluate every partition before removal plans receive final approval.

Operational Oversimplification

A common mistake involves designing spatial flow around static cabinet dimensions rather than dynamic human clearance paths. A plan may show adequate clearance for an island, but fail when appliance doors open simultaneously. Proper planning accounts for operational clearance, entry thresholds, and multi-user pass-through space during peak meal preparation hours.

Historical Context and Systemic Evolution

Residential kitchen layout design has undergone significant shifts over the past century. Early twentieth-century homes isolated the kitchen as a service utility room, hidden from primary living quarters. Mechanical systems were localized, reliance on electrical appliances was low, and spatial footprint dimensions remained small. Efficiency models centered on isolated, single-person tasks rather than social interaction.

The post-war suburban construction boom introduced standardized cabinetry, integrated gas and electric ranges, and expanded refrigeration units. The kitchen shifted closer to central living spaces, leading to the development of the traditional work triangle. Industrial engineers created this geometric concept to minimize travel distance between the refrigerator, sink, and cooktop.

The Rise of the Open Concept

The late twentieth century introduced the open-concept living revolution. Internal walls were dismantled to merge cooking, dining, and living environments into unified spaces. This architectural shift elevated the kitchen from a hidden service room to a primary social showcase. However, removing physical partitions eliminated traditional mechanical chases, forcing plumbing, electrical, and HVAC lines into exterior walls or floor assemblies.

High-Density Modern Integration

Today, kitchens operate as complex technical environments featuring smart automation, multi-zone climate control, heavy structural modifications, and specialized utility demand. Modern layouts must balance open-concept living with acoustic dampening, powerful ventilation, and multi-functional work zones. Modern kitchen remodeling plans must reconcile these competing engineering requirements within existing structural envelopes.

Conceptual Frameworks and Mental Models

Systemic planning requires clear structural frameworks to organize choices, manage budgets, and resolve spatial trade-offs.

The Multi-Zone Workflow Model

The traditional work triangle model often fails in modern high-density kitchens. Modern layouts utilize distinct preparation, cooking, cleaning, storage, and beverage stations. Each zone functions independently while maintaining clear traffic lanes between adjacent areas:

Storage Zone: Dedicated to refrigeration, dry pantry goods, and long-term bulk item placement.
Preparation Zone: Encompasses primary counter space, prep sinks, and immediate utensil access.
Cooking Zone: Integrates cooktops, ranges, wall ovens, and high-volume ventilation hoods.
Cleaning Zone: Houses primary sinks, dishwashers, and waste disposal systems.

The Structural-Mechanical Hierarchy

Physical space must be conceptualized as a series of structural layers. Mechanical, electrical, and plumbing infrastructure forms the foundation, followed by framing, surface finishes, and moveable fixtures. Renovations that ignore structural sequencing risk premature failures, retrofitting expenses, and code compliance violations.

Dynamic Clearance Envelope Model

Spatial dimensions must be evaluated dynamically rather than statically. Designers calculate minimum functional clearances based on open appliance doors, fully extended drawers, and concurrent human movement pathways.

Zone / Component	Minimum Static Clearance	Recommended Dynamic Clearance	Operational Consideration
Single-Cook Work Aisle	36 inches	42 inches	Allows full cabinet drawer extension
Multi-Cook Work Aisle	42 inches	48 inches	Enables concurrent pass-through movement
Island Walkway Path	36 inches	42 inches	Prevents bottlenecks near entrance zones
Seating-to-Wall Pass	32 inches	44 inches	Accommodates seated guests and walking traffic

Load-Path Continuity Model

Altering structural floor plans demands precise structural load-path assessment. Load transfer must flow continuously from roof structures down through floor joists to foundation footings. Removing load-bearing walls without installing hidden header beams risks structural sag, drywall cracking, and eventual catastrophic framing failure.

Core Architectural Categories and Spatial Layouts Modern Kitchen Remodeling Plans

Selecting a spatial configuration dictates mechanical routing options, storage capacity, and overall operational efficiency. Modern kitchen remodeling plans rely on clear layout classifications to optimize workflow within existing structural footprints.

Single-Wall Layouts

Single-wall configurations align all cabinetry, counter surfaces, and primary appliances along a single linear structure. This layout works well for narrow footprints, urban apartments, and compact open-plan spaces.

Advantages: Extremely efficient footprint use; low mechanical rough-in costs; straightforward construction execution.
Trade-Offs: Limited continuous counter space; strict linear workflow; minimal multi-cook capacity.

Galley Layouts

Galley kitchens utilize two parallel counter runs facing each other across a central aisle. Professional chefs favor this layout for its exceptional operational efficiency and tight workflow geometry.

Advantages: Maximum spatial storage density; optimized work triangle distances; highly efficient plumbing runs.
Trade-Offs: Creates potential foot traffic bottlenecks; isolates cooks from living areas; limited island integration.

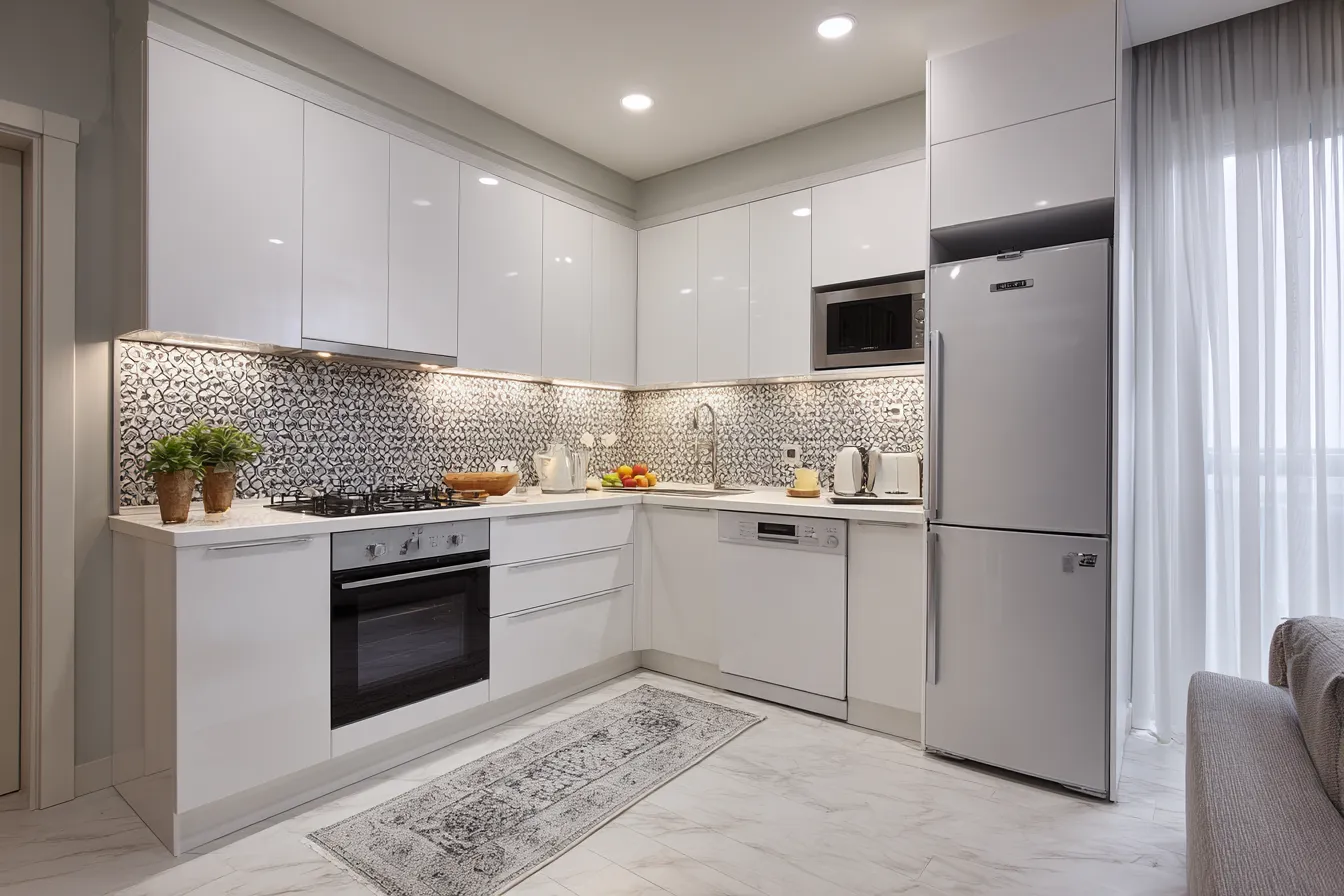

L-Shaped Layouts

L-shaped plans utilize two perpendicular walls, creating a natural open area for dining tables or secondary central islands.

Advantages: Highly adaptable; opens naturally to living rooms; eliminates cross-kitchen traffic hazards.
Trade-Offs: Corner cabinet access requires specialized hardware; long travel runs if appliance placement is unbalanced.

U-Shaped Layouts

U-shaped kitchens line three continuous walls with cabinetry and appliances, surrounding the cook on three sides with counter space.

Advantages: Maximum continuous work surfaces; massive storage capability; isolated work zone safety.
Trade-Offs: Can feel visually enclosed; creates two dead corner zones; requires wider structural room dimensions.

Peninsula Layouts

A peninsula layout attaches an island-style counter extension directly to an existing wall or cabinet run, offering island benefits in tighter floor plans.

Advantages: Provides secondary seating and prep space without requiring wide clearance aisles on all four sides.
Trade-Offs: Restricts entry and exit traffic paths to a single access point; creates complex corner joint connections.

Island-Centric Layouts

Island layouts use a freestanding central work counter surrounded by perimeter cabinetry. The island often houses secondary sinks, cooktops, and informal seating.

Advantages: Excellent social integration; flexible multi-zone workflow; extensive surface area for preparation.
Trade-Offs: Requires significant floor square footage; expensive mechanical rough-ins embedded directly into floor slabs.

Real-World Scenarios and Spatial Constraints Modern Kitchen Remodeling Plans

Architectural plans must adapt to unique structural constraints, building codes, and existing mechanical systems.

Scenario A: Urban Condominium Structural Overhaul

Urban high-rise units present severe structural constraints. Concrete floor slabs prevent sub-floor plumbing drops, while shared ventilation chases restrict hood exhaust re-routing.

Primary Constraints: Fixed plumbing stack locations; concrete floor construction; shared mechanical risers; strict association noise rules.
Decision Matrix: Designers install raised floor platforms or rear-plumbed drain systems to establish adequate gravity drain slopes without core-drilling concrete slabs.
Failure Modes: Inadequate drain slope causes chronic waste line backup; improper acoustic underlayment leads to tenant association fine notices.

Scenario B: Historic Suburban Home Structural Expansion

Early twentieth-century suburban homes feature small, compartmentalized kitchens surrounded by internal load-bearing plaster walls.

Primary Constraints: Load-bearing plaster walls; uneven subflooring; low-capacity electrical service panels.
Decision Matrix: Engineers design a flush-mounted structural LVL header beam within ceiling joists, opening space while maintaining load path continuity. Electrical service upgrades from 100-amp to 200-amp capacity accommodate high-draw appliances.
Failure Modes: Unmapped structural deflection causes ceiling sagging; inadequate panel capacity causes frequent breaker trips.

Scenario C: Post-War Suburban Ranch Open-Concept Conversion

Mid-century ranch homes feature low-pitched roofs, truss framing, and slab-on-grade foundations that complicate exhaust ventilation routing and drainage relocation.

Primary Constraints: Concrete slab foundations; low ceiling clearance; distant exterior sidewalls for ventilation exhaust.
Decision Matrix: Designers run ceiling-recessed ductwork between roof trusses, specifying high-CFM inline blowers to handle long horizontal duct runs.
Failure Modes: Low CFM ventilation fails to purge cooking grease; improperly sealed slab penetrations allow moisture intrusion.

Financial Dynamics, Budgeting, and Resource Allocation

Kitchen remodeling requires structured financial management. Unforeseen structural repairs, mechanical code upgrades, and material lead-time delays can compromise budgets without proper contingencies.

Budget Distribution Overview

Custom Cabinetry & Joinery: 30–35% of total budget allocation.
Appliances & Mechanical Fixtures: 20–25% of total budget allocation.
Labor, Framing & Trade Services: 18–22% of total budget allocation.
Countertops, Surfaces & Backsplashes: 10–14% of total budget allocation.
Structural Engineering & Permits: 5–8% of total budget allocation.
Contingency Fund for Unforeseen Conditions: 5–10% reserved for unexpected site repairs.

Comprehensive Cost Distribution Matrix

Project Scope Level	Typical Investment Range	Primary Structural & Mechanical Drivers	Risk Factors & Hidden Costs
Cosmetic & Surface Refinement	$25,000 – $45,000	Finish replacements; surface-mounted fixture updates; cabinet refacing.	Unmapped wall damage behind old backsplashes.
Mid-Tier Architectural Overhaul	$50,000 – $95,000	Non-bearing wall removal; minor layout updates; updated electrical sub-panels.	Subfloor level adjustments; plumbing relocations.
High-End Structural Transformation	$100,000 – $220,000+	Load-bearing wall removal; structural beam placement; sub-slab plumbing.	Main electrical panel upgrades; structural settling.

Implementation Strategies and Tool Selection

Executing modern kitchen remodeling plans requires specialized design, project management, and structural engineering software tools.

Architectural Drafting Systems

Chief Architect: Specialized residential modeling software that generates accurate cabinet construction profiles, wall framing lists, and 3D architectural views.
AutoCAD Architecture: Precision drafting software used to produce structural vector drawings, mechanical rough-in schedules, and structural permit submission documents.

Project Management Platforms

Buildertrend: Construction software that coordinates sub-contractor scheduling, change order approvals, and client communication logs.
Microsoft Project: Detailed Gantt-chart software used to manage complex project dependencies, material lead times, and critical path construction schedules.

Risk Landscape and Structural Failure Modes

Kitchen remodeling projects carry significant risk due to the density of mechanical systems within tight architectural footprints.

Unmapped Mechanical Conflicts

Demolishing framing without preliminary wall cavity scanning exposes hidden plumbing vents, electrical risers, or structural posts. Discovering these elements unexpectedly forces immediate, expensive spatial re-engineering.

Subfloor Framing Deflection

Installing heavy natural stone countertops or massive concrete islands on unreinforced floor joists causes structural floor deflection over time. This sagging leads to cracked tile grout, misaligned cabinet doors, and ceiling damage in spaces below.

Inadequate HVAC Makeup Air

High-powered commercial cooking range hoods draw significant cubic feet per minute (CFM) of air. Operating high-volume exhaust fans without dedicated makeup air units creates backdrafting in fuel-burning water heaters or furnaces, pulling toxic carbon monoxide back into living spaces.

Governance, Maintenance, and Adaptive Longevity

A successful kitchen layout maintains its structural integrity, mechanical efficiency, and visual quality over decades of daily operational use.

Structural and Mechanical Inspection Protocol

Phase 1: Monthly Operational Checks

Clean range hood baffle filters to prevent grease buildup within exhaust ducts.
Inspect under-sink plumbing connections for minor weeping, corrosion, or moisture leaks.

Phase 2: Semi-Annual Systems Review

Test GFCI and AFCI circuit breakers across all countertop electrical outlets.
Inspect stone countertop sealant coverage to prevent liquid penetration and permanent staining.

Phase 3: Annual Structural and Environmental Audits

Inspect floor joists beneath heavy island structures for signs of structural deflection.
Adjust integrated cabinet door hinges, drawer glides, and pull-out hardware to maintain even reveals.

Measurement, Performance, and Evaluation Standards

Evaluating a completed kitchen project requires assessing technical construction metrics alongside long-term mechanical efficiency and operational ergonomics.

Essential Architectural Metrics

Volumetric Exhaust Efficiency: Range hoods must fully clear airborne particulates within two minutes of high-output cooking without creating negative home pressure.
Illumination Uniformity: Task surfaces require a minimum of 50 foot-candles of light, eliminating dark shadows along prep areas.
Circuit Load Balancing: Dedicated appliance circuits must operate continuously at less than 80% maximum rated load capacity.

Structural Performance Verification

Framing Deflection Limits: Floor assemblies supporting heavy stone surfaces must meet strict $L/720$ deflection standards to prevent tile cracking.
Cabinet Level Tolerance: Installed cabinet bases must maintain vertical plumb and horizontal level within 1/16th of an inch across a ten-foot run.

Common Misconceptions and Strategic Errors

Myth 1: Kitchen Layout Planning Centers Entirely on Decorative Finishes

Correction: Surface finishes are cosmetic. True kitchen planning prioritizes structural framing, electrical load balancing, plumbing drops, and ergonomic clearance zones.

Myth 2: Open-Concept Floor Plans Always Increase Practical Living Usability

Correction: Removing all internal walls reduces total upper cabinet storage, exposes cooking noise to living areas, and forces complex floor-embedded utility routing.

Myth 3: The Traditional Work Triangle Remains the Superior Layout Strategy

Correction: Modern kitchens operate with multiple cooks and high-density appliances. Specialized, independent activity zones offer far superior workflow organization.

Myth 4: Range Hood Ventilation Can Always Be Recirculated

Correction: Ductless recirculating hood filters remove basic grease particles but fail to purge excess heat, humidity, or harmful gas combustion byproducts from living environments.

Myth 5: Recessed Can Lights Provide Complete Kitchen Task Illumination

Correction: Overhead recessed lighting casts harsh shadows directly onto preparation surfaces when cooks stand beneath them. Dedicated, under-cabinet task lighting remains mandatory.

Myth 6: Standard Appliance Dimensions Are Fully Interchangeable

Correction: Cutout dimensions, electrical outlet placements, plumbing rough-in locations, and door swing clearances vary significantly across appliance brands.

Ethical, Environmental, and Regulatory Considerations

Modern kitchen remodeling projects must comply with building codes, energy efficiency mandates, and responsible environmental disposal practices.

Core Sustainability Protocols

Waste Diversion: Salvage original solid-wood cabinetry, countertops, and functional appliances for reuse or housing donation programs.
Energy Standards: Specify high-efficiency appliances and heat pump induction technologies to lower total operational energy demands.
Indoor Air Quality: Utilize zero-VOC sealants, low-emission engineered materials, and fully sealed ducted ventilation systems to safeguard indoor environments.

Sustainable Demolition and Material Salvage

Demolition phases produce substantial solid construction waste. Responsible contractors sort, salvage, and donate usable solid-wood cabinetry, stone slabs, and operable appliances to non-profit housing networks, diverting thousands of pounds of material from landfills.

Indoor Air Quality Management

Synthetic composite woods and cabinet finishes can off-gas formaldehyde into interior living spaces. Specifying low-VOC adhesives, zero-emission plywood, and fully ducted high-CFM ventilation systems protects long-term indoor air quality.

Synthesis and Long-Term Architectural Strategy

Modern kitchen remodeling plans serve as comprehensive engineering blueprints that balance aesthetic goals with mechanical infrastructure demands. Successful renovations depend on accurate structural assessment, precise workflow zoning, disciplined financial management, and strict technical execution.

Treating a kitchen overhaul as an integrated architectural project rather than a superficial surface update ensures durable construction quality, operational efficiency, and long-term home value. Methodical planning converts complex structural and mechanical challenges into functional, long-lasting living environments.
